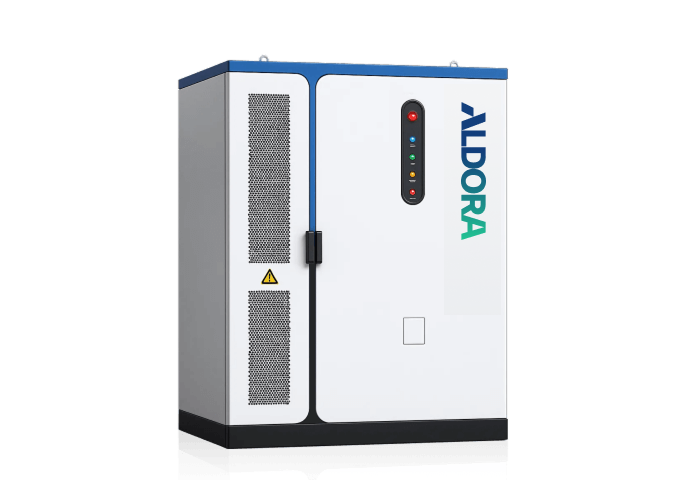

Aldora A261
105kW/261kWh Liquid-cooled
All-in-one Energy Storage Cabinet

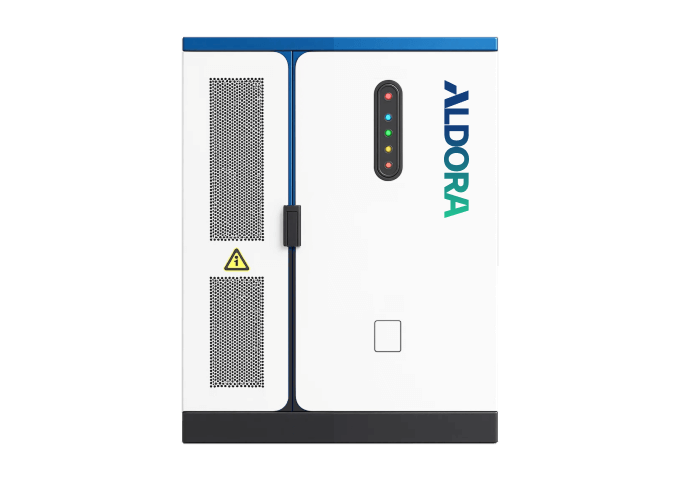

Key Features
Safety
- Three-level architecture BMS
- Cell-level data detection and management
- 6-level electrical protection
- Comprehensive fire protection system
- CE certification
Flexible Application
- Compatible with different European market grid connection standards
- Smaller footprint
- Flexible capacity configuration
Economical and Efficient
- Intelligent liquid cooling temperature control system
- Temperature difference between batteries below 5°C, extending system cycle life
- Lower auxiliary power consumption
- Lower electricity costs, higher resource utilization efficiency
- Plug-and-play
Intelligent
- Cloud platform + mobile app
- Active balancing
Technical specifications
105kW/261kWh Liquid-cooling BESS | |
|---|---|
| Product Model | Aldora A261 |
| Product Type | Lithium iron phosphate battery system |
NO. | Items | Specifications |
|---|---|---|
| 1 | Configuration | 1P52S * 5 |
| 2 | Rated Energy | 261.248kWh |
DC Side | ||
|---|---|---|
| 3 | Rated Voltage | 832Vdc |
| 4 | Voltage Scope | 702 ~ 936Vdc |
AC Side | ||
|---|---|---|
| 5 | Voltage Scope | 400Vac |
| 6 | Grid Frequency | 50 / 60Hz |
| 7 | Rated Current | 152A |
| 8 | Rated Charging Power | 105kW |
| 9 | Rated Discharging Power | 105kW |
System Parameters | ||
|---|---|---|
10 | Wiring Method | 3P+N+PE (N reservation) | |
|---|---|---|---|
| 11 | Environmental Conditions | Storage Temperature | -35℃ ~ +55℃ |
| Work Temperature | -30℃ ~ +50℃ (>45℃ derating to use) | ||
| Application | ≤4000m (≥2000m derating to use) |
| 12 | Basical Parameter | Dimension | 1450 * 2150 * 1330 mm |
| Color | RAL 9003 | ||
| IP Level | IP55 | ||
| Anti-Corrosion Grade Level | C4 (Up to C5) | ||
| Cooling Method | Liquid cooling | ||
| Communication Protocol | PCS: CAN/RS485/Ethernet EMS: Ethernet | ||
| Coolant | 50% glycol and water liquid |
